PETp Ertalyte Rods

Eralyte® PET-P,

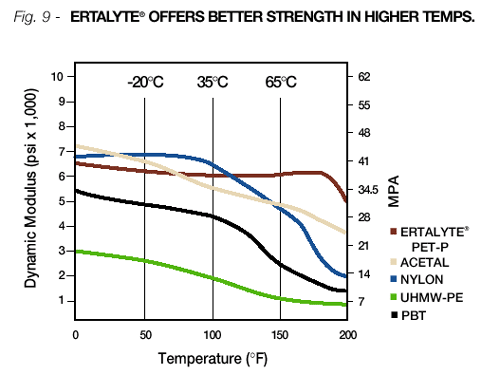

Ertalyte® is an unreinforced, semi-crystalline thermoplastic polyester based on polyethylene terephthalate (PET-P). It is manufactured from proprietary resin grades made by Quadrant. It is characterized as having the best dimensional stability coupled with excellent wear resistance, a low coefficient of friction, high strength, and resistance to moderately acidic solutions. Ertalyte®'s properties make it especially suitable for the manufacture of precision mechanical parts which are capable of sustaining high loads and enduring wear conditions. Ertalyte®'s continuous service temperature is 210F (100C) and its melting point is almost 150F higher than acetals. It retains significantly more of its original strength up to 180F (85C) than nylon or acetal.

In addition, Ertalyte® PET-P offers good chemical and abrasion resistance. Its low moisture absorption enables mechanical and electrical properties to remain virtually unaffected by moisture. Ertalyte® PET-P can be machined to precise detail on standard metal working equipment.

Ertalyte® is FDA compliant in natural and black. Natural Ertalyte® is also USDA, 3A-Dairy and Canada AG compliant.

Ertalyte® TX is an internally lubricated thermoplastic polyester providing enhanced wear and inertness over general purpose nylon(PA) and acetal(POM) products. Containing uniformly dispersed solid lubricant, Ertalyte® TX provides a lower wear rate and coefficient of friction than unmodified polyesters like PET or PBT and even internally lubricated materials like Delrin® AF blend.

Ertalyte® TX excels under both high pressure and velocity conditions. It is also ideally suited for applications involving soft metal and plastic mating surfaces.

Chemical Resistance Chart

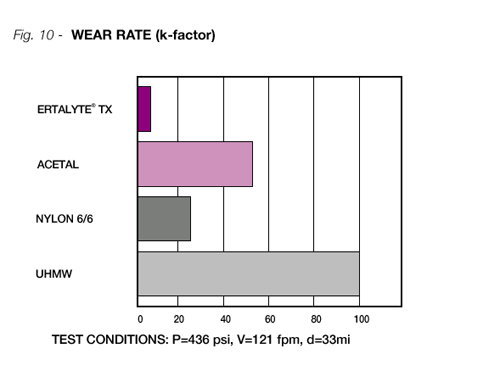

Wear Factors

CLTLE Graph

Ertalyte Petp Technical Data Sheet

PETp Ertalyte Round Rods, 5 Ft Std. Lengths
Diameter	Stock Order#	Standard Length	Price Per Foot	Purchase Online
.500"	KR-5284	4' & 8' -- 8' Min.	$5.40	Buy Now
.625"	KR-5283	5'	$6.48	Buy Now
.750"	KR-5274	5'	$7.74	Buy Now
1.00"	KR-5281	4' & 8' -- 8' Min.	$12.96	Buy Now
1.25"	KR-5289	4' & 8' -- 8' Min.	$18.93	Buy Now
1.50"	KR-5279	4' & 8' -- 8' Min.	$26.25	Buy Now
1.75"	KR-5277	5'	$34.23	Buy Now
2.00"	KR-5295	5'	$43.32	Buy Now
2.25"	KR-5276	4' & 8' -- 8' Min.	$57.84	Buy Now
2.50"	KR-5282	4' & 8' -- 8' Min.	$70.89	Buy Now
2.75"	KR-5275	4' & 8' -- 8' Min.	$85.59	Buy Now
3.00"	KR-5280	5'	$104.91	Buy Now
3.75"	KR-5297	5'	$171.11	Buy Now
4.00"	KR-5304	5'	$183.60	Buy Now

Ertalyte TX Petp Technical Data Sheet

PETp Ertalyte TX Round Rods
Diameter	Stock Order#	Standard Length	Price Per Foot	Purchase Online
.375	KR-5303	4' & 8' -- 8' Min.	$7.43	Buy Now
.500	KR-5302	4' & 8' -- 8' Min.	$7.74	Buy Now
1.00	KR-5301	5'	$25.55	Buy Now
1.25	KR-5300	5'	$36.97	Buy Now
1.50	KR-5299	5'	$50.69	Buy Now
1.75	KR-5298	5'	$71.46	Buy Now
2.00	KR-5290	5'	$91.05	Buy Now
2.50	KR-5296	5'	$142.76	Buy Now
3.00	KR-5306	5'	$222.83	Buy Now
